[PyQt5] 새창 띄워서 matplotlib & blit을 이용한 더 빠른 실시간 그래프 그리기

본 글은 다음 글에 이어 나오는 글이다.

[PYTHON] matplotlib.animation 빠르게 그리기 : blitting, https://stella47.tistory.com/449

[PyQt5] 새 창을 띄워서 matplotlib.animation으로 실시간 그래프 그리기, https://stella47.tistory.com/445





고치다 말았는데, plt.subplot의 용법을 보면 할 수 있을 거 같다.

fig, (ax1, ax2) = plt.subplot(1,2)

이런 식이다.

더보기를 누르면 코드를 볼 수 있다.

import sys
from PyQt5.QtCore import Qt, QTimer
from PyQt5.QtWidgets import QPushButton, QLabel, QComboBox
from PyQt5.QtWidgets import QMainWindow, QApplication, QWidget, QVBoxLayout
import matplotlib.pyplot as plt
import matplotlib.animation as animation
from matplotlib.backend_bases import FigureCanvasBase
from matplotlib.backends.backend_qt5agg import FigureCanvasQTAgg as FigureCanvas
from matplotlib.backends.backend_qt5agg import NavigationToolbar2QT as NavigationToolbar

from pubsub import pub
import multiprocessing as mp
import time
import math

from stop_watch import StopWatch

QApplication.setAttribute(Qt.AA_EnableHighDpiScaling, True)

class FigureBase(QWidget):
    def __init__(self):
        super().__init__()

        # Default Figure Setting
        self._time_scale = 10
        self._change_fig = False

        pub.subscribe(self._cb_figure_cmd_rx, "figure_cmd_rx")
        pub.subscribe(self._cb_figure_data_rx, "figure_data_rx")
        # To check running time
        self._stop_watch_draw = StopWatch()
        self._stop_watch_module = StopWatch()

        self._init_draw()
        self._init_UI()

        self._timer_freq = 20
        self._timer = QTimer(self)
        self._timer.start()
        self._timer.setInterval(int(1000/self._timer_freq))
        self._timer.timeout.connect(self.update)

        self.setGeometry(310,300,400,600)
        self.show()

    def __del__(self):
        plt.close()

    # override figure close event from QWidget
    def closeEvent(self, event):
        plt.close()
        self.close()

    def _init_UI(self):
        vbox = QVBoxLayout()
        vbox.addWidget(self._toolbar)
        vbox.addWidget(self._canvas)
        self.setLayout(vbox)
        self.setGeometry(400,300,400,600)

    def _init_draw(self):
        # sub-class will store data at this lists
        self._number_of_figures = 3
        self._time = list()
        self._data = list()
        self._data.append(list([]))
        self._data.append(list([]))
        self._data.append(list([]))
        self._data.append(list([]))
        self._fig = plt.Figure()
        self._canvas = self._fig.canvas
        self._toolbar = NavigationToolbar(self._canvas, self)

        # Figure Settings
        cfg = list()
        cfg.append(list([0]))
        cfg.append(list([]))
        cfg.append(list([]))
        # make figure list
        self._plots = list()

        # Figure Loop
        for fig_idx in range(0, self._number_of_figures):
            self._plots.append({"FIGURE":self._fig.add_subplot(self._number_of_figures,1,fig_idx+1)})
            self._plots[fig_idx]['INDEX'] = cfg[fig_idx]

        self._update_figure_configuration()
        self._set_initial_background()

    # have some changes about figure setting,
    def _update_figure_configuration(self):
        for fig_idx in range(0, self._number_of_figures):
            self._plots[fig_idx]['FIGURE'].clear()
            self._plots[fig_idx]['LINES'] = list()
            # Line Loop
            for line_idx in range(len(self._plots[fig_idx]['INDEX'])):
                (line, ) = self._plots[fig_idx]['FIGURE'].plot([0,0], [0,0], animated=True)
                self._plots[fig_idx]['LINES'].append(line)

    # set background for blit
    def _set_initial_background(self):
        for fig_idx in range(0, self._number_of_figures):
            self._plots[fig_idx]['FIGURE'].set_xlim(0,self._time_scale)
            self._plots[fig_idx]['FIGURE'].set_ylim(-2.0, 2.0)
        self.bg = self._fig.canvas.copy_from_bbox(self._fig.bbox)
        self._fig.canvas.blit(self._fig.bbox)

    def update(self):
        self._before_drawing()

        self._draw_plots()

        self._stop_watch_module.click()
        pub.sendMessage("draw_dt",msgData=self._stop_watch_module.get_dt())

    # 그리기 전에 아무거나 계산
    def _before_drawing(self):
        self._stop_watch_module.click()
        pub.sendMessage("draw_dt",msgData=self._stop_watch_module.get_dt())

        # Check configure changes
        if(self._change_fig == True):
            self._update_figure_configuration()

        x = self._stop_watch_draw.get_time_since()
        self._time.append(x)
        self._data[0].append(math.sin(x))
        self._data[1].append(math.cos(x))
        self._data[2].append(math.sin(x/2)*2.0)
        self._data[3].append(math.cos(x/2)*2.0)

    def _blit_wrapper_for_draw(func):
        def wrapper(self, *args, **kwargs):
            self._fig.canvas.restore_region(self.bg)
            func(self, *args, **kwargs)
            self._fig.canvas.blit(self._fig.bbox)
            self._fig.canvas.flush_events()
        return wrapper

    @_blit_wrapper_for_draw
    def _draw_plots(self):
        min_idx = self._find_x_lim()
        for item in self._plots:
            item['FIGURE'].clear()
            item['FIGURE'].grid()
            # Put each data @ sub-class
            for idx in item['INDEX']:
                item['LINES'].set_xdata(self._time)
                item['LINES'].set_ydata(self._data[idx])
                item['FIGURE'].draw_artist(item['LINES'])
            if(len(self._time) >= 2):
                item['FIGURE'].set_xlim(self._time[-1]-self._time_scale, self._time[-1])

    def _cb_figure_cmd_rx(self, msgData):
        # print(msgData)
        figure  = msgData['FIGURE']
        idx     = msgData['INDEX']
        cmd     = msgData['COMMAND']
        if(cmd == 'ADD'):
            if(idx not in self._plots[figure]['INDEX']):
                self._plots[figure]['INDEX'].append(idx)
                self._change_fig = True
        else: # REMOVE
            if(idx in self._plots[figure]['INDEX']):
                self._plots[figure]['INDEX'].remove(idx)
                self._change_fig = True
        print(self._plots)
        # pass

    def _cb_figure_data_rx(self):
        pass

    # 보여줄 크기에 맞는 인덱스를 찾는다.
    def _find_x_lim(self):
        min_idx = 0
        for idx in range(len(self._time)):
            if(self._time[-1] - self._time[-idx-1] > self._time_scale):
                min_idx = idx+1
                break
        return min_idx

    def pause(self):
        # stop 은 멈추는데
        # start 가 아예 새로 시작함
        # self.ani.event_source.stop()
        self.ani.pause()

    def resume(self):
        # start나 resume이랑 다를 바 없이 다 지우고 시작한다.
        # self.ani.event_source.start()
        self.ani.resume()

    def close(self):
        self.ani.event_source.stop() # 애니메이션 정지
        # self._timer.stop() # 데이터 업데이트 정지
        # plt.close() # 이거 해봤자 창이 안꺼짐.
        super().close() # 이걸 해야 위젯이 꺼진다.

class Tester(QMainWindow):

    def __init__(self):
        super().__init__()
        self._widget = None  # No external window yet.

        self.cb = list()
        cb = QComboBox(self)
        cb.setGeometry(10, 90, 90, 30)
        cb.addItem("Fig.1")
        cb.addItem("Fig.2")
        cb.addItem("Fig.3")
        self.cb.append(cb)
        cb = QComboBox(self)
        cb.setGeometry(110, 90, 90, 30)
        cb.addItem("data.1")
        cb.addItem("data.2")
        cb.addItem("data.3")
        cb.addItem("data.4")
        self.cb.append(cb)

        self.button = list()
        button = self._get_button('Create', parent=self, geo=[10, 10, 90, 30],  callback=self._create_plot)
        self.button.append(button)
        button = self._get_button('Close',  parent=self, geo=[10, 50, 90, 30],  callback=self._close_plot)
        self.button.append(button)
        button = self._get_button('Pause',  parent=self, geo=[110, 10, 90, 30], callback=self._pause_plot)
        self.button.append(button)
        button = self._get_button('Resume', parent=self, geo=[110, 50, 90, 30], callback=self._resume_plot)
        self.button.append(button)
        button = self._get_button('Add',    parent=self, geo=[10, 130, 90, 30], callback=self._add_plot)
        self.button.append(button)
        button = self._get_button('Remove', parent=self, geo=[110, 130, 90, 30], callback=self._remove_plot)
        self.button.append(button)

        self.label = QLabel("dt :   ms", self)
        self.label.setGeometry(10, 170, 120, 30)
        font = self.label.font()
        font.setPointSize(10)
        self.label.setFont(font)

        pub.subscribe(self._cb_dt, 'draw_dt')
        self.dt = 0

        self.setGeometry(100,300,210,200)
        self.show()

    def _create_plot(self):
        if self._widget is not None:
            if (self._widget.isVisible() == False): # 우측 상단 X으로 끄면 visible이 False가 된다.
                self._close_plot()
            else:
                return
        self._widget = FigureBase() # 아무튼 초기화 했으니 켠다.
        # proc = mp.Process(target=self._widget.animate, )
        # proc.start()
        # proc.join()

    def _pause_plot(self):
        if self._widget is not None:
            self._widget.pause()

    def _resume_plot(self):
        if self._widget is not None:
            self._widget.resume()

    def _close_plot(self):
        if self._widget is not None:
            self._widget.close()
            self._widget.__del__()
            self._widget = None

    def _add_plot(self):
        pub.sendMessage("figure_cmd_rx", msgData={"FIGURE":self.cb[0].currentIndex(), "INDEX":self.cb[1].currentIndex(), "COMMAND":"ADD"})
        # print("Add {} to {}".format(self.cb[1].currentText(), self.cb[0].currentText()))

    def _remove_plot(self):
        pub.sendMessage("figure_cmd_rx", msgData={"FIGURE":self.cb[0].currentIndex(), "INDEX":self.cb[1].currentIndex(), "COMMAND":"REMOVE"})
        # print("Remove {} to {}".format(self.cb[1].currentText(), self.cb[0].currentText()))

    def _get_button(self, name, parent, geo, callback=None):
        button = QPushButton(name, parent)
        button.setGeometry(geo[0],geo[1],geo[2],geo[3])
        if(callback != None): button.clicked.connect(callback)
        return button

    def _cb_dt(self, msgData):
        self.dt = msgData
        self.label.setText("dt : {:10.3f} ms".format(self.dt))

if __name__ == "__main__":

    print('support_blit : ', FigureCanvasBase.supports_blit)
    app = QApplication(sys.argv)
    tester = Tester()
    app.exec()



위에 코드는 QWidget을 이용한 코드인데 너무 느리다.

아래는 native Matplotlib와 blit을 이용해서 고속 드로잉을 했다.

대충 1프레임을 그리는데 4ms가 소모된다.

더보기를 누르면 코드를 볼 수 있다.

import sys
from PyQt5.QtCore import Qt, QTimer
from PyQt5.QtWidgets import QPushButton, QLabel, QComboBox
from PyQt5.QtWidgets import QMainWindow, QApplication, QWidget, QVBoxLayout
import matplotlib.pyplot as plt
import matplotlib.animation as animation
from matplotlib.backend_bases import FigureCanvasBase
from matplotlib.backends.backend_qt5agg import FigureCanvasQTAgg as FigureCanvas
from matplotlib.backends.backend_qt5agg import NavigationToolbar2QT as NavigationToolbar

from pubsub import pub
import numpy as np

from stop_watch import StopWatch

QApplication.setAttribute(Qt.AA_EnableHighDpiScaling, True)

class FigureMaker():
    def __init__(self):
        self._ys_len = 4
        self._number_of_figure = 3
        self._cfg = list()
        self._cfg.append(list([0,1,2]))
        self._cfg.append(list([0]))
        self._cfg.append(list([1]))

        self._idx = 0

        self._stop_watch_module = StopWatch()
        self._first_gen = True
        self._do_draw = True
        self._fig = None
        self._bg = None


        self._init_data()
        self._init_figure()
        self._change_fig = True
        self._init_plot()
        # self._init_plot_data()
        # self._init_background()
        self._update_before_drawing()
        pub.subscribe(self._cb_figure_cmd_rx, "figure_cmd_rx")

    def _init_data(self):
        self._time = list()
        self._data = list()
        self._time.append(0)
        for i in range(0,self._ys_len):
            data = {"NAME":"data{}".format(i), "DATA":list()}
            self._data.append(data)
            self._data[i]['DATA'].append(0)

    def _init_figure(self):
        fig = plt.figure(num=1)
        axs = list()
        for i in range(self._number_of_figure):
            subplot_num = self._number_of_figure * 100 + i + 11
            ax = fig.add_subplot(subplot_num)
            axs.append(ax)
        # fig, axs = plt.subplots(nrows=self._number_of_figure, ncols=1)
        if(self._first_gen == True):
            fig.set_figwidth(6)
            fig.set_figheight(8)
            self._first_gen = False
        fig.tight_layout()
        self._fig = fig
        self._axs = axs
        self.cid = self._fig.canvas.mpl_connect("draw_event", self.update_draw)
        # self.cid = self._fig.canvas.mpl_connect("resize_event", self.update_draw)

    def _init_plot(self):
        self._figures = list()
        for ax_idx, ax in enumerate(self._axs):
            figure = {"AX":ax, "LINE":dict(), "LEGEND":list()}
            for data_idx in self._cfg[ax_idx]:
                figure['LINE'][data_idx] = None
            self._figures.append(figure)

    def _init_plot_data(self):
        # Plot Initialization
        for ax_idx in range(len(self._axs)):
            # print('Fig.{} - '.format(ax_idx), figures[ax_idx]['LINE'].keys())
            figure = self._figures[ax_idx]
            figure['LEGEND'] = list()
            for data_idx in figure['LINE'].keys():
                (line, ) = figure['AX'].plot(self._time, self._data[data_idx]['DATA'], animated=True)
                figure['LINE'][data_idx] = line
                figure['LEGEND'].append("data.{}".format(data_idx))
            self._fig_config(figure['AX'], figure['LEGEND'])
        plt.show(block=False)

    def _init_background(self):
        # Background Image
        self._bg = self._fig.canvas.copy_from_bbox(self._fig.bbox)
        for ax_idx in range(len(self._axs)):
            figure = self._figures[ax_idx]
            for line in figure['LINE'].values():
                figure['AX'].draw_artist(line)
        self._fig.canvas.blit(self._fig.bbox)

    def _update_before_drawing(self):
        # Preparing data
        x = 0
        for j in range(10000):
            x = x + 0.01
            self._time.append(x)
            for i in range(self._ys_len):
                self._data[i]['DATA'].append(float(i+1)*np.sin(x))

    def update_draw(self, event):
        """Callback to register with 'draw_event'."""
        cv = self._fig.canvas
        print("Event " , event)
        if event is not None:
            if event.canvas != cv:
                raise RuntimeError

        print("Update draw : ", end='')
        if(self._change_fig == True):
            print("Change! ", end='')
            plt.clf()
            # self._change_fig = False
            self._init_figure()
            self._init_plot()
            self._init_plot_data()
            self._init_background()
        print("")

        self._bg = cv.copy_from_bbox(cv.figure.bbox)
        self._draw_animated()

    def _draw_animated(self):
        j = self._idx
        if(self._do_draw == True):
            self._idx += 10
        # Update figure
        for ax_idx in range(len(self._axs)):
            figure = self._figures[ax_idx]
            ax = figure['AX']
            for data_idx in figure['LINE'].keys():
                line = figure['LINE'][data_idx]
                line.set_xdata(self._time[:j])
                line.set_ydata(self._data[data_idx]['DATA'][:j])
                ax.draw_artist(line)
            ax.set_xlim(self._time[j]-10, self._time[j])
            ax.set_ylim(-5, 5)
            ax.set_yticks(np.arange(-5, 5, step=1.0))

    def update(self):
        if(self._change_fig == True):
            self.update_draw(None)
            self._fig.canvas.draw_idle()
            self._change_fig = False

        # Load background
        cv = self._fig.canvas
        # Drawing
        if self._bg is None:
            self.update_draw(None)
        else:
            # restore the background
            cv.restore_region(self._bg)
            # draw all of the animated
            self._draw_animated()
            # update the GUI state
            cv.blit(self._fig.bbox)
        cv.flush_events()

        self._stop_watch_module.click()
        pub.sendMessage("draw_dt",msgData=self._stop_watch_module.get_dt())

    def pause(self):
        self._do_draw = False

    def resume(self):
        self._do_draw = True

    def _refresh_figure(self):
        self._fig.canvas.draw_idle()

    def _add_line(self, ax_idx, data_idx):
        print("Add data{} at Fig.{}".format(data_idx, ax_idx))
        # (line, ) = self._figures[ax_idx]['AX'].plot(self._time, self._data[data_idx]['DATA'], animated=True)
        # self._figures[ax_idx]['LINE'][data_idx] = line

    def _remove_line(self, ax_idx, data_idx):
        print("Remove data{} at Fig.{}".format(data_idx, ax_idx))
        # del self._figures[ax_idx]['LINE'][data_idx]

    def _fig_config(self, ax, legends):
        j = self._idx
        ax.set_xlim(0, 10)
        ax.set_ylim(-5,5)
        ax.grid(True)
        ax.legend(legends,loc='upper right')

    def _cb_figure_cmd_rx(self, msgData):
        # print(msgData)
        figure  = msgData['FIGURE']
        idx     = msgData['INDEX']
        cmd     = msgData['COMMAND']
        ax_item = self._figures[figure]
        if(cmd == 'ADD'):
            if(idx not in self._cfg[figure]):
                print("Add ", self._cfg[figure], "<- {}".format(idx))
                self._cfg[figure].append(idx)
                self._change_fig = True
        else: # REMOVE
            if(idx in self._cfg[figure]):
                print("remove ", self._cfg[figure], "<- {}".format(idx))
                self._cfg[figure].remove(idx)
                self._change_fig = True
        print(self._figures)

class Tester(QMainWindow):

    def __init__(self):
        super().__init__()
        self._widget = None  # No external window yet.

        self.cb = list()
        cb = QComboBox(self)
        cb.setGeometry(10, 90, 90, 30)
        cb.addItem("Fig.1")
        cb.addItem("Fig.2")
        cb.addItem("Fig.3")
        self.cb.append(cb)
        cb = QComboBox(self)
        cb.setGeometry(110, 90, 90, 30)
        cb.addItem("data.1")
        cb.addItem("data.2")
        cb.addItem("data.3")
        cb.addItem("data.4")
        self.cb.append(cb)

        self.button = list()
        button = self._get_button('Create', parent=self, geo=[10, 10, 90, 30],  callback=self._create_plot)
        self.button.append(button)
        button = self._get_button('Close',  parent=self, geo=[10, 50, 90, 30],  callback=self._close_plot)
        self.button.append(button)
        button = self._get_button('Pause',  parent=self, geo=[110, 10, 90, 30], callback=self._pause_plot)
        self.button.append(button)
        button = self._get_button('Resume', parent=self, geo=[110, 50, 90, 30], callback=self._resume_plot)
        self.button.append(button)
        button = self._get_button('Add',    parent=self, geo=[10, 130, 90, 30], callback=self._add_plot)
        self.button.append(button)
        button = self._get_button('Remove', parent=self, geo=[110, 130, 90, 30], callback=self._remove_plot)
        self.button.append(button)
        button = self._get_button('Update', parent=self, geo=[110, 170, 90, 30], callback=self._refresh_plot)
        self.button.append(button)

        self.label = QLabel("dt :   ms", self)
        self.label.setGeometry(10, 170, 120, 30)
        font = self.label.font()
        font.setPointSize(10)
        self.label.setFont(font)

        pub.subscribe(self._cb_dt, 'draw_dt')
        self.dt = 0

        self.setGeometry(100,300,210,200)
        self.show()

        self._create_plot()

    def _create_plot(self):
        if self._widget is not None:
            if (self._widget.isVisible() == False): # 우측 상단 X으로 끄면 visible이 False가 된다.
                self._close_plot()
            else:
                return
        self._widget = FigureMaker() # 아무튼 초기화 했으니 켠다.

        self.timer_freq = 20
        self._timer = QTimer(self)
        self._timer.start()
        self._timer.setInterval(int(1000/self.timer_freq))
        self._timer.timeout.connect(self._widget.update)
        # proc = mp.Process(target=self._widget.animate, )
        # proc.start()
        # proc.join()

    def _pause_plot(self):
        print("Pause")
        if self._widget is not None:
            self._widget.pause()

    def _resume_plot(self):
        print("resume")
        if self._widget is not None:
            self._widget.resume()

    def _close_plot(self):
        if self._widget is not None:
            self._timer.stop()
            del self._widget
            plt.close()
            self._widget = None

    def _add_plot(self):
        pub.sendMessage("figure_cmd_rx", msgData={"FIGURE":self.cb[0].currentIndex(), "INDEX":self.cb[1].currentIndex(), "COMMAND":"ADD"})
        # print("Add {} to {}".format(self.cb[1].currentText(), self.cb[0].currentText()))

    def _remove_plot(self):
        pub.sendMessage("figure_cmd_rx", msgData={"FIGURE":self.cb[0].currentIndex(), "INDEX":self.cb[1].currentIndex(), "COMMAND":"REMOVE"})
        # print("Remove {} to {}".format(self.cb[1].currentText(), self.cb[0].currentText()))

    def _refresh_plot(self):
        if self._widget is not None:
            self._widget._refresh_figure()

    def _get_button(self, name, parent, geo, callback=None):
        button = QPushButton(name, parent)
        button.setGeometry(geo[0],geo[1],geo[2],geo[3])
        if(callback != None): button.clicked.connect(callback)
        return button

    def _cb_dt(self, msgData):
        self.dt = msgData
        self.label.setText("dt : {:10.3f} ms".format(self.dt))

    def closeEvent(self, event):
        self._close_plot()
        self._timer.stop()
        plt.close()

if __name__ == "__main__":

    app = QApplication(sys.argv)
    tester = Tester()
    app.exec()

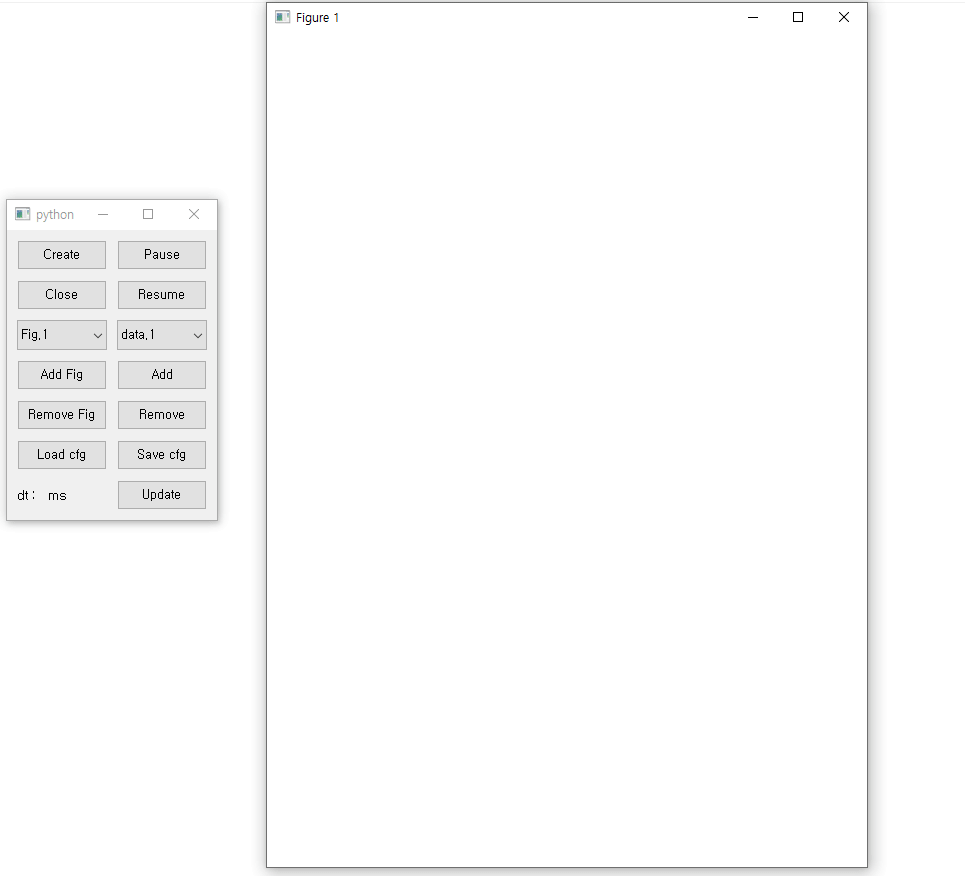

Figure 구성을 불러오고 저장할 수 있게 해두었다.

하다가 갑자기 한 사이클 당 시간 소모가 급격히 늘어나는 문제가 있었는데,

매번 그릴 때, tight_layout을 해주면 50~100ms 가량 증가하는 것을 확인했다.

그래서 배경을 그릴 때만 실행하도록 해주면 좋다.

더보기를 누르면 코드를 볼 수 있다.

import sys
from PyQt5.QtCore import Qt, QTimer
from PyQt5.QtWidgets import QPushButton, QLabel, QComboBox, QFileDialog, QMessageBox
from PyQt5.QtWidgets import QMainWindow, QApplication, QWidget, QVBoxLayout

import matplotlib.pyplot as plt
import matplotlib.animation as animation
from matplotlib.backend_bases import FigureCanvasBase
from matplotlib.backends.backend_qt5agg import FigureCanvasQTAgg as FigureCanvas
from matplotlib.backends.backend_qt5agg import NavigationToolbar2QT as NavigationToolbar

from pubsub import pub
import numpy as np
import math
import json

from stop_watch import StopWatch

QApplication.setAttribute(Qt.AA_EnableHighDpiScaling, True)

class FigureMaker():
    def __init__(self, number_of_figure = 3):
        self._ys_len = 4
        self._number_of_figure = max(3, number_of_figure)
        self._cfg = list()
        self._cfg.append(list([0,1,2]))
        self._cfg.append(list([0]))
        self._cfg.append(list([1]))

        self._idx = 0

        self._stop_watch_module = StopWatch()
        self._first_gen = True
        self._do_draw = True
        self._fig = None
        self._bg = None

        self._time_scale = 15
        self._change_fig = True
        self._init_data()
        self._init_figure()
        self._init_plot()
        # self._init_plot_data()
        # self._init_background()
        self._update_before_drawing()
        pub.subscribe(self._cb_figure_cmd_rx, "figure_cmd_rx")

    def _init_data(self):
        self._time = list()
        self._data = list()
        self._time.append(0)
        for i in range(0,self._ys_len):
            data = {"NAME":"data{}".format(i), "DATA":list()}
            self._data.append(data)
            self._data[i]['DATA'].append(0)

    def _init_figure(self):
        fig = plt.figure(num=1)
        axs = list()
        for i in range(self._number_of_figure):
            subplot_num = self._number_of_figure * 100 + i + 11
            ax = fig.add_subplot(subplot_num)
            axs.append(ax)
        # fig, axs = plt.subplots(nrows=self._number_of_figure, ncols=1)
        if(self._first_gen == True):
            fig.set_figwidth(6)
            fig.set_figheight(8)
            self._first_gen = False
        self._fig = fig
        self._axs = axs
        self.cid = self._fig.canvas.mpl_connect("draw_event", self.update_draw)
        self.cid = self._fig.canvas.mpl_connect("resize_event", self.update_draw)

    def _init_plot(self):
        self._figures = list()
        for ax_idx, ax in enumerate(self._axs):
            figure = {"AX":ax, "LINE":dict(), "LEGEND":list()}
            for data_idx in self._cfg[ax_idx]:
                figure['LINE'][data_idx] = None
            self._figures.append(figure)

    def _init_plot_data(self):
        # Plot Initialization
        for ax_idx in range(len(self._axs)):
            # print('Fig.{} - '.format(ax_idx), figures[ax_idx]['LINE'].keys())
            figure = self._figures[ax_idx]
            figure['LEGEND'] = list()
            for data_idx in figure['LINE'].keys():
                (line, ) = figure['AX'].plot(self._time, self._data[data_idx]['DATA'], animated=True)
                figure['LINE'][data_idx] = line
                figure['LEGEND'].append("data.{}".format(data_idx))
            self._fig_config(figure['AX'], figure['LEGEND'])
        plt.show(block=False)

    def _init_background(self):
        # Background Image
        self._bg = self._fig.canvas.copy_from_bbox(self._fig.bbox)
        for ax_idx in range(len(self._axs)):
            figure = self._figures[ax_idx]
            for line in figure['LINE'].values():
                figure['AX'].draw_artist(line)
        self._fig.canvas.blit(self._fig.bbox)

    def _update_before_drawing(self):
        # Preparing data
        x = 0
        for j in range(10000):
            x = x + 0.01
            self._time.append(x)
            for i in range(self._ys_len):
                self._data[i]['DATA'].append(float(i+1)*np.sin(x))

    def update_draw(self, event):
        """Callback to register with 'draw_event'."""
        cv = self._fig.canvas
        # print("Event " , event)
        if event is not None:
            if event.canvas != cv:
                raise RuntimeError

        # print("Update draw : ", end='')
        if(self._change_fig == True):
            # print("Change! ", end='')
            plt.clf()
            self._init_figure()
            self._init_plot()
            self._init_plot_data()
            self._init_background()
        # print("")

        self._bg = cv.copy_from_bbox(cv.figure.bbox)
        self._draw_animated()

    def _draw_animated(self):
        j = self._idx
        if(self._do_draw == True):
            self._idx += 10
        # Update figure
        for ax_idx in range(len(self._axs)):
            figure = self._figures[ax_idx]
            ax = figure['AX']
            for data_idx in figure['LINE'].keys():
                line = figure['LINE'][data_idx]
                line.set_xdata(self._time[:j])
                line.set_ydata(self._data[data_idx]['DATA'][:j])
                ax.draw_artist(line)
            x_min = (self._time[j]-self._time_scale)
            x_max = (self._time[j])
            ax.set_xlim(x_min, x_max)
            ax.set_ylim(-5, 5)
            # ax.set_xticks(np.arange(x_min, x_max, step=1.0))
            # ax.set_yticks(np.arange(-5, 5, step=1.0))
        self._figures[-1]['AX'].set_xlabel('Time [sec]')

    def update(self):
        if(self._change_fig == True):
            self.update_draw(None)
            self._fig.canvas.draw_idle()
            self._change_fig = False
            self._fig.tight_layout() # It costs lot of time (almost 0~50ms, totally 4~200ms)

        # Load background
        cv = self._fig.canvas
        # Drawing
        if self._bg is None:
            self.update_draw(None)
        else:
            # restore the background
            cv.restore_region(self._bg)
            # draw all of the animated
            self._draw_animated()
            # update the GUI state
            cv.blit(self._fig.bbox)
        cv.flush_events()

        self._stop_watch_module.click()
        pub.sendMessage("draw_dt",msgData=self._stop_watch_module.get_dt())

    def pause(self):
        self._do_draw = False

    def resume(self):
        self._do_draw = True

    def _refresh_figure(self):
        self._fig.canvas.draw_idle()

    def _add_line(self, ax_idx, data_idx):
        print("Add data{} at Fig.{}".format(data_idx, ax_idx))
        # (line, ) = self._figures[ax_idx]['AX'].plot(self._time, self._data[data_idx]['DATA'], animated=True)
        # self._figures[ax_idx]['LINE'][data_idx] = line

    def _remove_line(self, ax_idx, data_idx):
        print("Remove data{} at Fig.{}".format(data_idx, ax_idx))
        # del self._figures[ax_idx]['LINE'][data_idx]

    def _fig_config(self, ax, legends):
        j = self._idx
        ax.set_xlim(0, 10)
        ax.set_ylim(-5,5)
        ax.grid(True)
        ax.legend(legends,loc='upper right')

    def _cb_figure_cmd_rx(self, msgData):
        # print(msgData)
        figure  = msgData['FIGURE']
        idx     = msgData['INDEX']
        cmd     = msgData['COMMAND']
        ax_item = self._figures[figure]
        if(cmd == 'ADD'):
            if(idx not in self._cfg[figure]):
                print("Add ", self._cfg[figure], "<- {}".format(idx))
                self._cfg[figure].append(idx)
                self._change_fig = True
        else: # REMOVE
            if(idx in self._cfg[figure]):
                print("remove ", self._cfg[figure], "<- {}".format(idx))
                self._cfg[figure].remove(idx)
                self._change_fig = True
        print(self._figures)


    def get_visible(self):
        print('figure visible ', self._fig.get_visible())
        return self._fig.get_visible()

    def add_figure(self):
        self._number_of_figure = max(self._number_of_figure + 1, 1)
        self._cfg.append([0])
        self._change_fig = True
        print("figures : {}".format(self._number_of_figure))

    def remove_figure(self):
        self._number_of_figure = max(self._number_of_figure - 1, 1)
        del self._cfg[-1]
        self._change_fig = True
        print("figures : {}".format(self._number_of_figure))

    def set_time_scale(self, time_scale):
        self._time_scale = max(10.0, time_scale)

    def load_setting(self, number_of_figure, cfg):
        self._cfg = cfg
        self._number_of_figure = number_of_figure
        self._change_fig = True

    def save_setting(self):
        return self._number_of_figure, self._cfg


class Tester(QMainWindow):

    def __init__(self):
        super().__init__()
        self._widget = None  # No external window yet.

        self.cb = list()
        cb = QComboBox(self)
        cb.setGeometry(10, 90, 90, 30)
        cb.addItem("Fig.1")
        cb.addItem("Fig.2")
        cb.addItem("Fig.3")
        self.cb.append(cb)


        cb = QComboBox(self)
        cb.setGeometry(110, 90, 90, 30)
        cb.addItem("data.1")
        cb.addItem("data.2")
        cb.addItem("data.3")
        cb.addItem("data.4")
        self.cb.append(cb)

        self.button = list()
        self._button_create     = self._get_button('Create',        parent=self, geo=[10, 10, 90, 30],   callback=self._create_plot)
        self._button_close      = self._get_button('Close',         parent=self, geo=[10, 50, 90, 30],   callback=self._close_plot)

        self._button_pause      = self._get_button('Pause',         parent=self, geo=[110, 10, 90, 30],  callback=self._pause_plot)
        self._button_resume     = self._get_button('Resume',        parent=self, geo=[110, 50, 90, 30],  callback=self._resume_plot)

        self._button_add_line   = self._get_button('Add',           parent=self, geo=[110, 130, 90, 30],  callback=self._add_plot)
        self._button_remove_line= self._get_button('Remove',        parent=self, geo=[110, 170, 90, 30],  callback=self._remove_plot)

        self._button_add_fig    = self._get_button('Add Fig',       parent=self, geo=[10, 130, 90, 30], callback=self._add_figure)
        self._button_remove_fig = self._get_button('Remove Fig',    parent=self, geo=[10, 170, 90, 30], callback=self._remove_figure)

        self._button_load_cfg   = self._get_button('Load cfg',      parent=self, geo=[ 10, 210, 90, 30], callback=self._load_config)
        self._button_save_cfg   = self._get_button('Save cfg',      parent=self, geo=[110, 210, 90, 30], callback=self._save_config)

        self._button_update     = self._get_button('Update',        parent=self, geo=[110, 250, 90, 30], callback=self._refresh_plot)

        self.label = QLabel("dt :   ms", self)
        self.label.setGeometry(10, 250, 90, 30)
        font = self.label.font()
        font.setPointSize(10)
        self.label.setFont(font)

        pub.subscribe(self._cb_dt, 'draw_dt')
        self.dt = 0

        self.setGeometry(100,300,210,290)
        self.show()

        self._create_plot()

    def _exist_widget(func):
        def wrapper(self):
            if self._widget is not None:
                return func(self)
            else:
                QMessageBox.warning(self, "Warning", "Figure didn\'t exist.")
        return wrapper

    def _create_plot(self):
        if self._widget is not None:
            # if (self._widget.get_visible() == False): # 우측 상단 X으로 끄면 visible이 False가 된다.
            self._close_plot()
            # else:
            #     return
        self._widget = FigureMaker() # 아무튼 초기화 했으니 켠다.

        self.timer_freq = 20
        self._timer = QTimer(self)
        self._timer.start()
        self._timer.setInterval(int(1000/self.timer_freq))
        self._timer.timeout.connect(self._widget.update)
        # proc = mp.Process(target=self._widget.animate, )
        # proc.start()
        # proc.join()

    @_exist_widget
    def _pause_plot(self):
        print("Pause")
        self._widget.pause()

    @_exist_widget
    def _resume_plot(self):
        print("resume")
        self._widget.resume()

    def _close_plot(self):
        self._timer.stop()
        if self._widget is not None:
            del self._widget
        plt.close()
        self._widget = None

    @_exist_widget
    def _add_plot(self):
        pub.sendMessage("figure_cmd_rx", msgData={"FIGURE":self.cb[0].currentIndex(), "INDEX":self.cb[1].currentIndex(), "COMMAND":"ADD"})
        # print("Add {} to {}".format(self.cb[1].currentText(), self.cb[0].currentText()))

    @_exist_widget
    def _remove_plot(self):
        pub.sendMessage("figure_cmd_rx", msgData={"FIGURE":self.cb[0].currentIndex(), "INDEX":self.cb[1].currentIndex(), "COMMAND":"REMOVE"})
        # print("Remove {} to {}".format(self.cb[1].currentText(), self.cb[0].currentText()))

    @_exist_widget
    def _refresh_plot(self):
        self._widget._refresh_figure()

    @_exist_widget
    def _add_figure(self):
            self._widget.add_figure()
            length = self.cb[0].count()
            self.cb[0].addItem("Fig.{}".format(length+1))

    @_exist_widget
    def _remove_figure(self):
        self._widget.remove_figure()
        length = self.cb[0].count()
        self.cb[0].removeItem(length)

    @_exist_widget
    def _load_config(self):
        file_name = QFileDialog.getOpenFileName(self, 'Open file', './', 'json file (*.json)')

        print(file_name)

        if file_name[0]:
            with open(file_name[0], 'r') as f:
                configs = json.load(f)
                self._widget.load_setting(configs['FIGURES'], configs['cfg'])
                import pprint
                pprint.pprint(configs)

    @_exist_widget
    def _save_config(self):
        file_name = QFileDialog.getSaveFileName(self, 'Save file', './', 'json file (*.json)')

        print(file_name)

        figures, cfg = self._widget.save_setting()
        configs = dict()
        configs['FIGURES'] = figures
        configs['cfg'] = cfg
        if (file_name[0] != ""):
            with open(file_name[0], 'w') as f:
                json.dump(configs, f, ensure_ascii=False, indent=4)

    def _get_button(self, name, parent, geo, callback=None):
        button = QPushButton(name, parent)
        button.setGeometry(geo[0],geo[1],geo[2],geo[3])
        if(callback != None): button.clicked.connect(callback)
        return button

    def _cb_dt(self, msgData):
        self.dt = msgData
        self.label.setText("dt : {:10.3f} ms".format(self.dt))

    def closeEvent(self, event):
        self._close_plot()
        self._timer.stop()
        plt.close()

if __name__ == "__main__":

    app = QApplication(sys.argv)
    tester = Tester()
    app.exec()



위 코드의 결과물은 다음과 같다.

그리기를 20Hz으로 수행하도록 타이머를 걸어두었는데,

50ms 보다 조금 더 큰 54~75 ms를 소모한다.

그리는데 매우 짧은 시간을 소비하는 것이다.





EOF
